Novanni Commercial – 1009/316AI

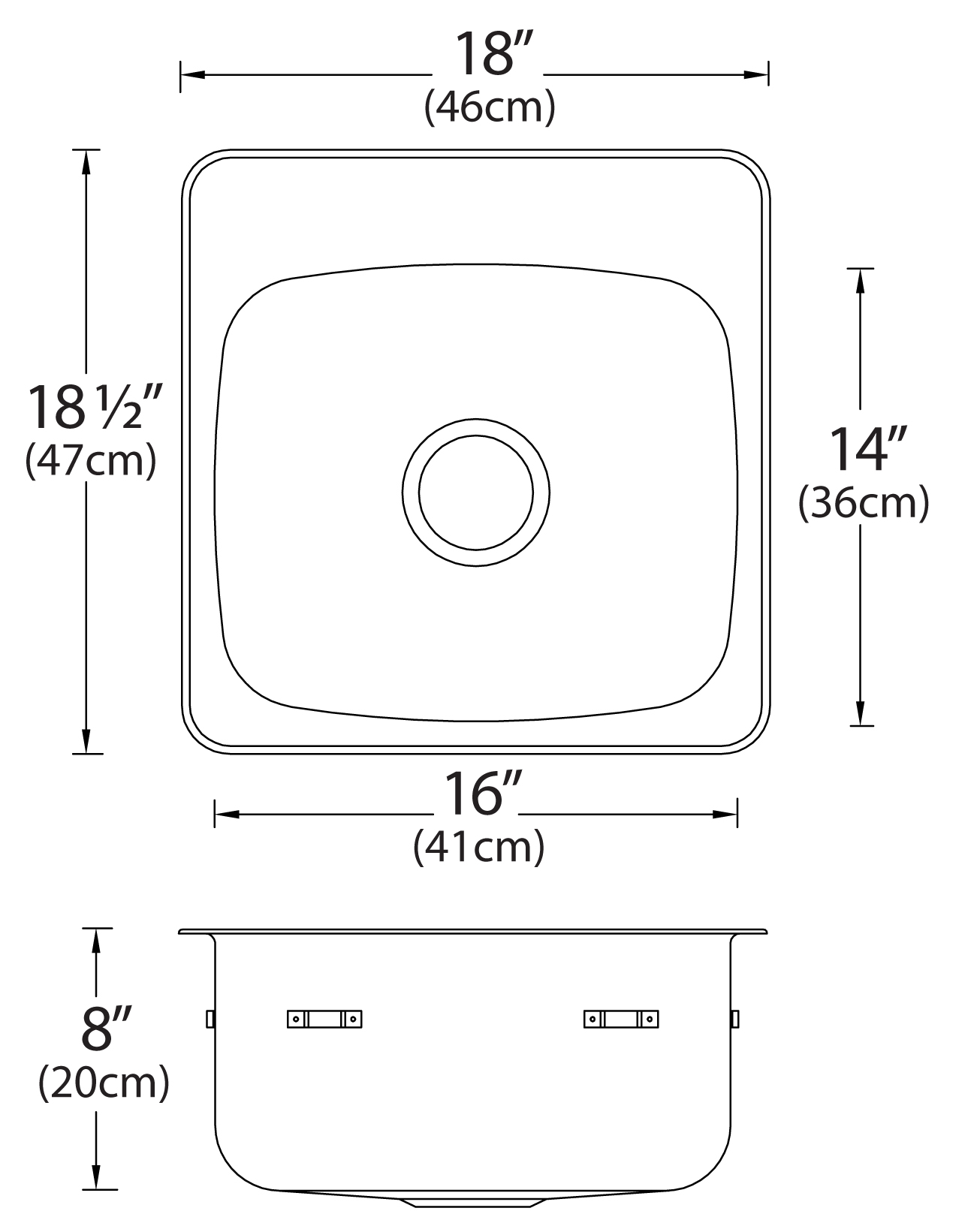

Stainless steel single bowl drop-in sink with ledge, overall dimensions of 18” x 18 ½” (46 cm x 47 cm), bowl dimension of 16” x 14” (41 cm x 36 cm) and a depth of 8” (20 cm). Centre waste, 3 ½” (9 cm) basket strainer assembly with tailpiece included, satin finish, 18Ga. T316, off-the-bowl clamp system, self-rimming, SynkSeal™ foam-in-place gasket installed, includes template and installation hardware.

Minimum cabinet width: 21” (53 cm)

Spec Sheet

1009/316AI Spec Sheet

Template Cutout File in DXF File

1009 DXF File
